Domestic · EV and outdoor

EV charger and garden lighting at a new-build home

A smart home charger, outdoor power and a restrained garden lighting scheme, installed as one planned job rather than three separate ones.

East Durham

A modern detached house at dusk with a wall-mounted EV charger beside the garage and a grey electric car charging on the block-paved drive
Property
Modern four-bedroom detached house
Scope
Smart EV charger, outdoor sockets, garden lighting
Programme
Survey, then two days on site
Paperwork
EIC, Northern Powergrid notification, charger registration
Location
East Durham

01The requirement

The owners had an electric car on order and wanted a charger ready for delivery day. While we were there, they wanted power at the far end of the garden for tools and a pond pump, and lighting that made the garden usable in the evening without lighting up the neighbours.

02The condition and the constraint

The consumer unit was in the garage on the opposite side of the house from the drive, and the rear garden was already landscaped with a porcelain patio laid the year before. Nothing could be dug up. The house also had a PME earthing arrangement, which has to be accounted for when a charger is installed outdoors.

03The work completed

  • A survey of the supply, existing load and earthing, with a charger chosen that includes load management and suitable open-PEN protection
  • A dedicated charger circuit run through the garage and along the house wall in neat, straight conduit
  • A weatherproof outdoor double socket beside the drive
  • An armoured supply to the end of the garden, run along the boundary fence line and under an existing path edge rather than through the patio
  • Low bollard lights along the path, two spike uplights on a birch tree, and wall lights either side of the garden doors, on separate switching from the kitchen
  • Northern Powergrid notified, the charger registered, and charging scheduled on the owners' overnight tariff

04Safety and disruption

Work was split so the house supply was only off for a short, agreed period. Every outdoor circuit has RCD protection and IP-rated fittings, and the garden supply ends at a weatherproof isolator so the pump can be switched off safely for maintenance.

05The result

The charger was working before the car arrived, and the owners were shown how to schedule it from the app. The garden has usable power at both ends and a lighting scheme that can be switched in layers from the house. The patio was never lifted.

Project gallery

Photographs from the job.

An electrician in safety glasses fixes grey external conduit in a straight line along a brick wall, a cordless drill beside him
An electrician in safety glasses fixes grey external conduit in a straight line along a brick wall, a cordless drill beside him.
A wall-mounted EV charger beside the front door of a red-brick semi-detached house, its cable connected to a grey car on the driveway
A wall-mounted EV charger beside the front door of a red-brick semi-detached house, its cable connected to a grey car on the driveway.

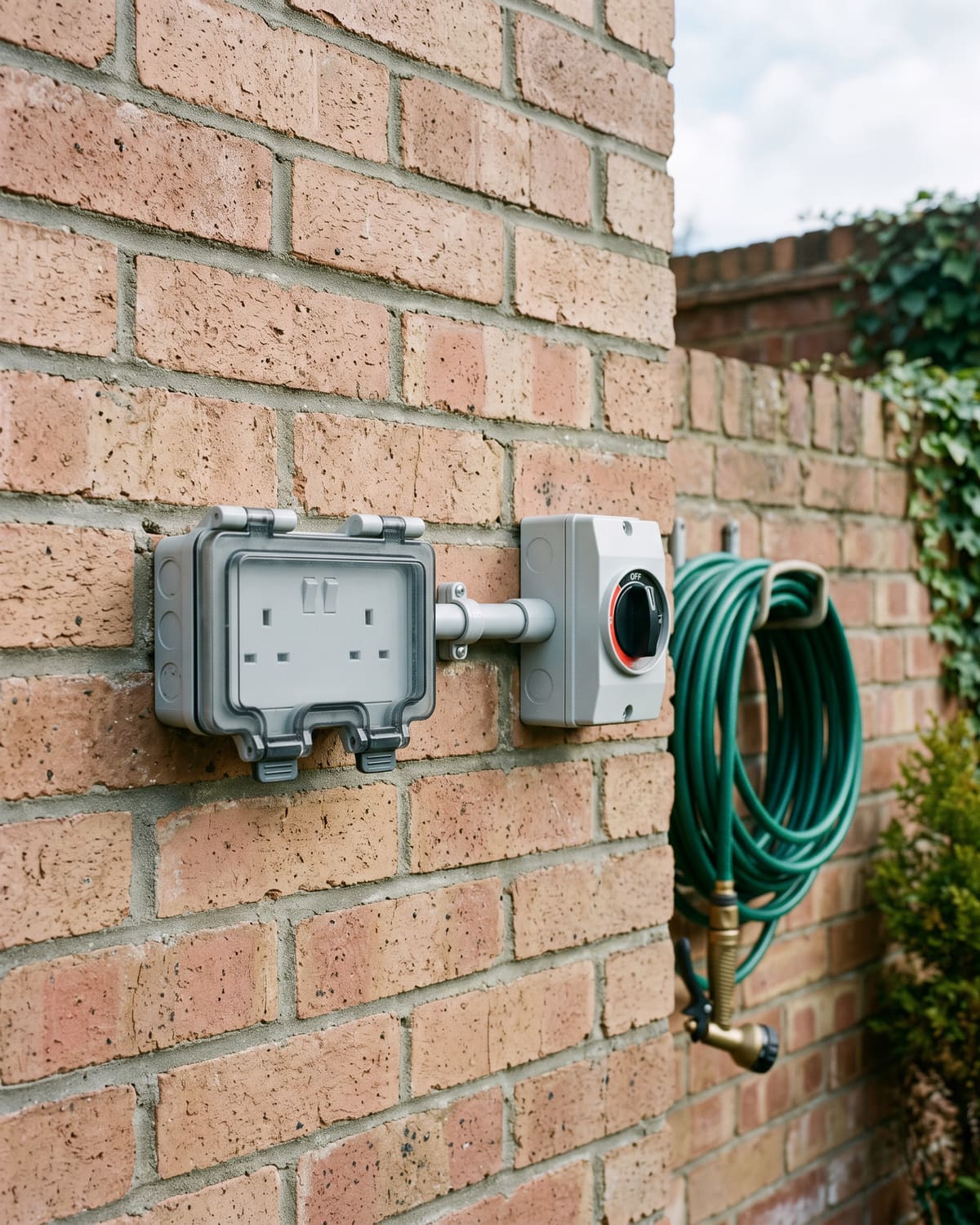

A weatherproof outdoor double socket and a separate rotary isolator on a light brick wall, joined by a straight run of grey conduit
A weatherproof outdoor double socket and a separate rotary isolator on a light brick wall, joined by a straight run of grey conduit.
A modern rear garden at blue hour with low bollard lights along a path, uplights on a birch tree and wall lights beside the glazed doors
A modern rear garden at blue hour with low bollard lights along a path, uplights on a birch tree and wall lights beside the glazed doors.

An illustrative case study for this website concept. Photographs are generated imagery made for the concept, not a record of a real job.
